Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10.

Product versions

Add

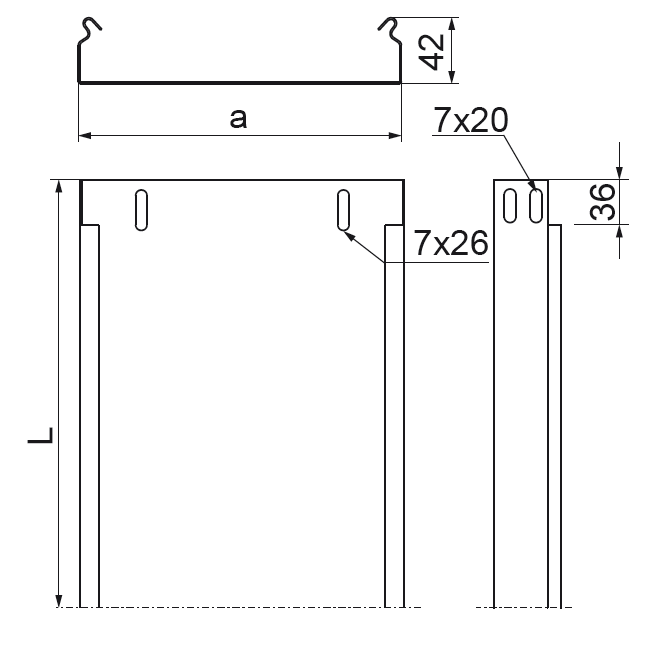

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 1900 mm
	KBR50H42/2	141505	50	2 000 mm	0.60 kg	8 / 16 pcs. / m.	1,900	Add
	KBR50H42/3	141605	50	3 000 mm	0.60 kg	8 / 24 pcs. / m.	1,900	Add
100 mm 4000 mm
	KBR100H42/2	141510	100	2 000 mm	0.80 kg	4 / 8 pcs. / m.	4,000	Add
	KBR100H42/3	141610	100	3 000 mm	0.80 kg	4 / 12 pcs. / m.	4,000	Add
200 mm 8200 mm
	KBR200H42/3	141620	200	3 000 mm	1.22 kg	4 / 12 pcs. / m.	8,200	Add
300 mm 12400 mm
	KBR300H42/3	141630	300	3 000 mm	1.62 kg	4 / 12 pcs. / m.	12,400	Add
