Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding one
into another and connector-free assembly. For the assembly use Screw
Sets SGK M6x12 or SG M6x12.

NOTE! The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays can
be joined only by means of connectors (no cut-outs in the tray’s side).

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.

Product versions

Add

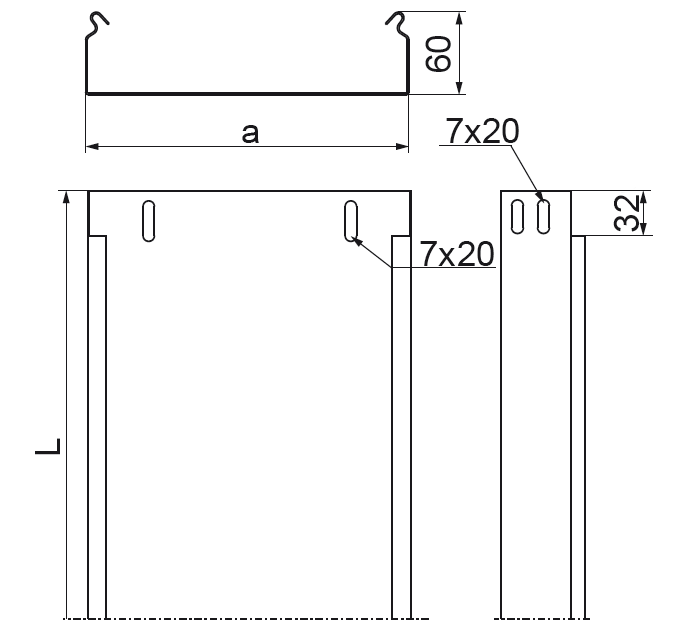

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2900 mm
	KBJ50H60/3	162024	50	3 000 mm	1.42 kg	4 / 12 pcs. / m.	2,900	Add
100 mm 5800 mm
	KBJ100H60/3	162210	100	3 000 mm	1.87 kg	4 / 12 pcs. / m.	5,800	Add
150 mm 8800 mm
	KBJ150H60/3	162215	150	3 000 mm	2.24 kg	4 / 12 pcs. / m.	8,800	Add
200 mm 11800 mm
	KBJ200H60/3	162220	200	3 000 mm	2.62 kg	4 / 12 pcs. / m.	11,800	Add
300 mm 17800 mm
	KBJ300H60/3	162230	300	3 000 mm	3.37 kg	2 / 6 pcs. / m.	17,800	Add
400 mm 23800 mm
	KBJ400H60/3	161640	400	3 000 mm	4.12 kg	2 / 6 pcs. / m.	23,800	Add
500 mm 29800 mm
	KBJ500H60/3	161650	500	3 000 mm	4.87 kg	2 / 6 pcs. / m.	29,800	Add
600 mm 35800 mm
	KBJ600H60/3	161660	600	3 000 mm	5.63 kg	2 / 6 pcs. / m.	35,800	Add
