Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

NOTE!
The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays
can be joined only by means of connectors (no cut-outs in the tray’s side)
use SGKM6x12 or SGM6x12 screws.

Product versions

Add

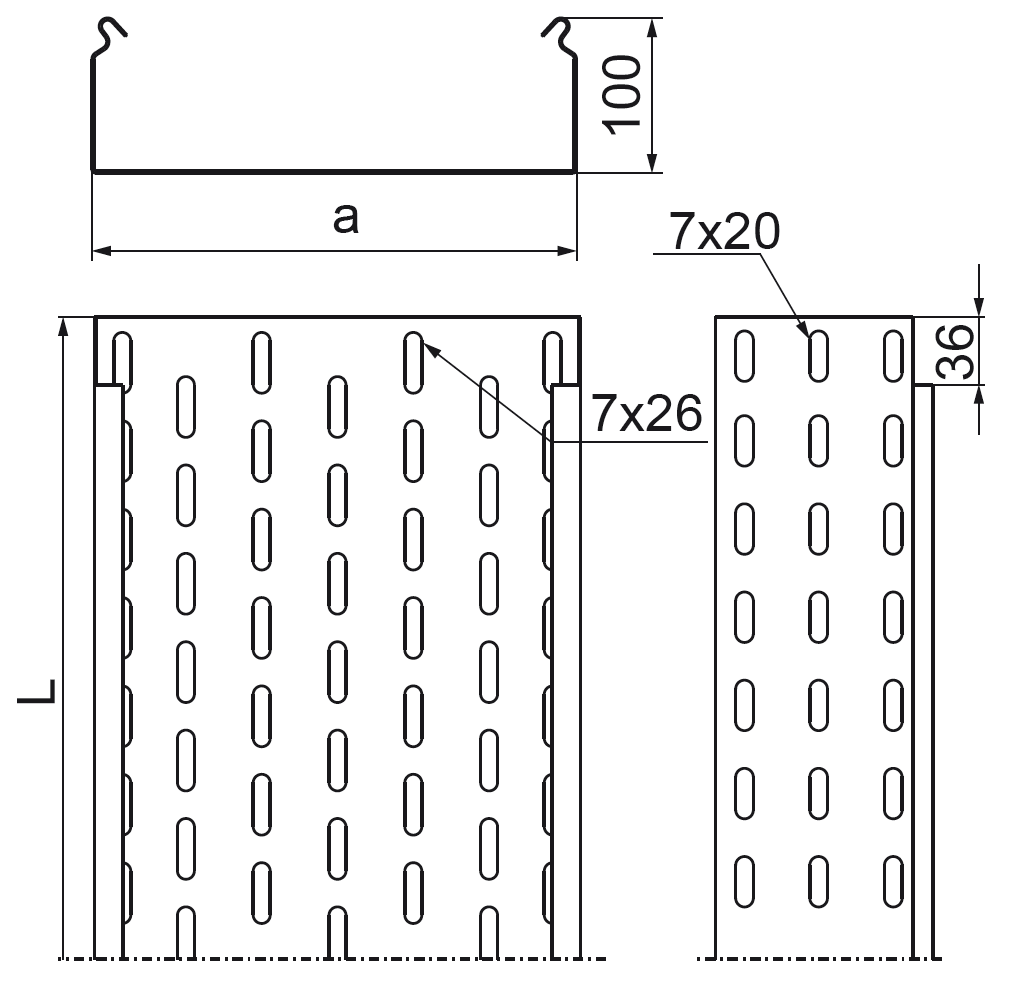

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 9800 mm
	KCJ100H100/3	110410	100	3 000 mm	2 kg	4 / 12 pcs. / m.	9,800	Add
200 mm 19800 mm
	KCJ200H100/3	110420	200	3 000 mm	2.56 kg	4 / 12 pcs. / m.	19,800	Add
300 mm 29800 mm
	KCJ300H100/3	110430	300	3 000 mm	3.21 kg	4 / 12 pcs. / m.	29,800	Add
400 mm 39800 mm
	KCJ400H100/3	110440	400	3 000 mm	3.90 kg	2 / 6 pcs. / m.	39,800	Add
500 mm 49800 mm
	KCJ500H100/3	110450	500	3 000 mm	4.61 kg	2 / 6 pcs. / m.	49,800	Add
600 mm 59800 mm
	KCJ600H100/3	110460	600	3 000 mm	5.29 kg	2 / 6 pcs. / m.	59,800	Add
