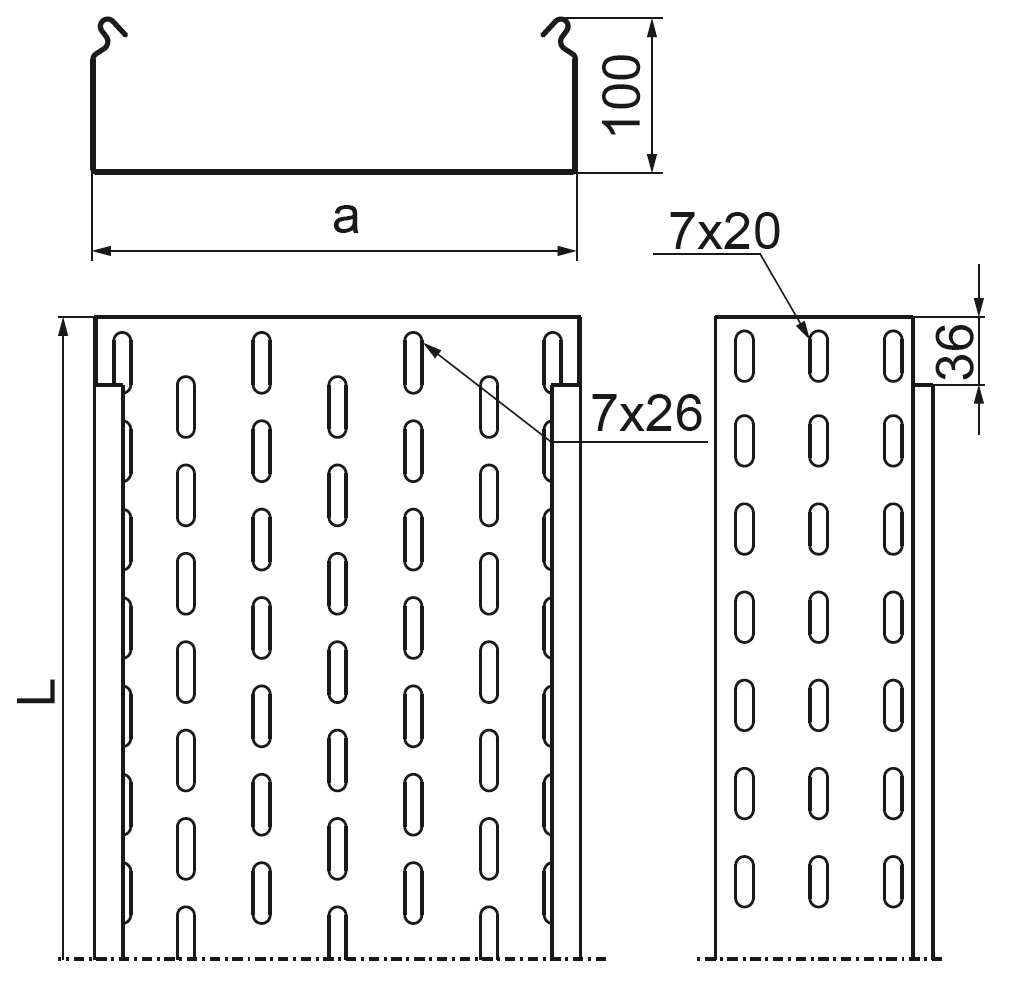

Cable routing
Material
S - Sendzimir method galvanised steel PN-EN 10346:2015-09
Available finishes:
F - hot dip galvanised steel PN-EN ISO 1461:2023-02
E - stainless steel
L - painting in standard RAL colour
Additional information
Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.
NOTE!
The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays
can be joined only by means of connectors (no cut-outs in the tray’s side)
use SGKM6x12 or SGM6x12 screws.
