0.7

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

NOTE!
The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays
can be joined only by means of connectors (no cut-outs in the tray’s side)
use SGKM6x12 or SGM6x12 screws

Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.

Product versions

Add

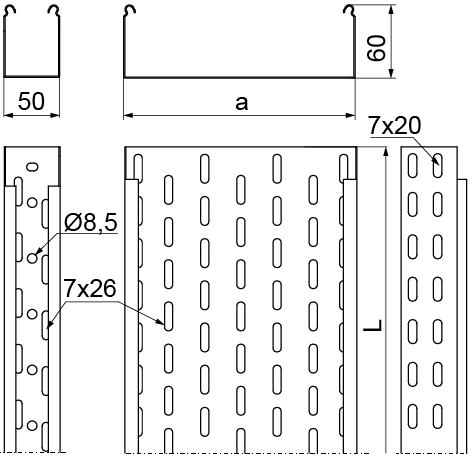

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2900 mm
	KGL/KCL50H60/2	160324	50	2 000 mm	0.98 kg	4 / 8 pcs. / m.	2,900	Add
	KGL/KCL50H60/3	160424	50	3 000 mm	0.98 kg	4 / 12 pcs. / m.	2,900	Add
100 mm 5800 mm
	KCL/KCOL100H60/3	160810	100	3 000 mm	1.17 kg	4 / 12 pcs. / m.	5,800	Add
150 mm 8800 mm
	KCL/KCOL150H60/3	160815	150	3 000 mm	1.43 kg	4 / 12 pcs. / m.	8,800	Add
200 mm 11800 mm
	KCL/KCOL200H60/3	160820	200	3 000 mm	1.63 kg	4 / 12 pcs. / m.	11,800	Add
300 mm 17800 mm
	KCL/KCOL300H60/3	160830	300	3 000 mm	2.23 kg	2 / 6 pcs. / m.	17,800	Add
400 mm 23800 mm
	KCL400H60/3	160240	400	3 000 mm	2.60 kg	2 / 6 pcs. / m.	23,800	Add
500 mm 29800 mm
	KCL500H60/3	160250	500	3 000 mm	3.10 kg	2 / 6 pcs. / m.	29,800	Add
600 mm 35800 mm
	KCL600H60/3	160260	600	3 000 mm	3.58 kg	2 / 6 pcs. / m.	35,800	Add
