Routing a cable route.
Material
MC - steel in Mangelis® coating
Additional information
– connector-less system – connecting trays by overlapping or inserting one into the other and bolting together with SGKFM6x12

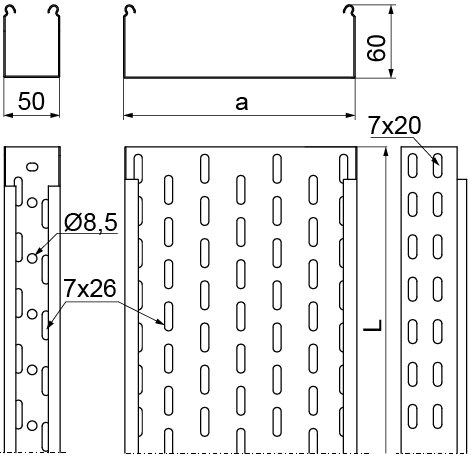

– Ø8.5 holes in the bottom of the trays with the width of 50 mm allow them to be suspended on M8 rod
– Magnelis-coating system can be supplemented with hot-dip zinc or stainless steel products
– detailed information on the Magnelis coating is available at baks.com.com.pl
– option E90 for widths of 50 – 300 mm
Note
Cable trays support system without couplers. Optional connecting of trays through inserting one tray into another and wrench with screws. We recommend using of couplers with heavy loads only.
