0.7

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x12 or SGM6x12.

Product versions

Add

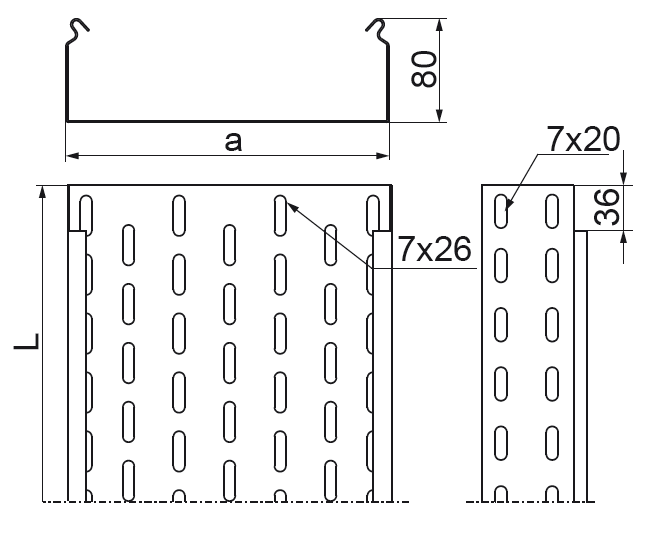

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 7800 mm
	KCL100H80/3	180210	100	3 000 mm	1.40 kg	4 / 12 pcs. / m.	7,800	Add
150 mm 11800 mm
	KCL150H80/3	180215	150	3 000 mm	1.57 kg	4 / 12 pcs. / m.	11,800	Add
200 mm 15800 mm
	KCL200H80/3	180220	200	3 000 mm	1.77 kg	4 / 12 pcs. / m.	15,800	Add
300 mm 23800 mm
	KCL300H80/3	180230	300	3 000 mm	2.27 kg	2 / 6 pcs. / m.	23,800	Add
