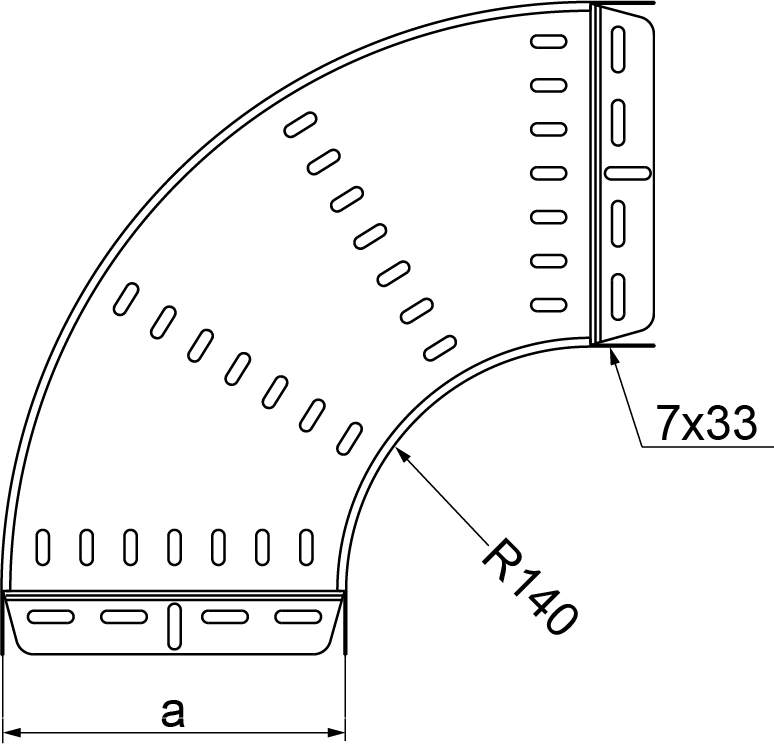

KKPJ...H80 Horizontal Bend 90°

1.0
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add
Symbol Weight 1 pc. (kg) Catalogue number Quantity (pcs.) Size a (mm)
KKPJ100H80
Cable Management Solutions – BAKS
0.71
Cable Management Solutions – BAKS
180114
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
100 		Add
KKPJ150H80
Cable Management Solutions – BAKS
0.94
Cable Management Solutions – BAKS
180214
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
150 		Add
KKPJ200H80
Cable Management Solutions – BAKS
1.20
Cable Management Solutions – BAKS
180314
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
200 		Add
KKPJ300H80
Cable Management Solutions – BAKS
1.81
Cable Management Solutions – BAKS
180414
Cable Management Solutions – BAKS
1
Cable Management Solutions – BAKS
300 		Add
Examples
