Routing a cable route.
Material
MC - steel in Mangelis® coating
Additional information
– quick and easy mounting
– stable snap-in connection
– deep embossed holes in the bottom of the tray from the width 100 mm increased strength
– The dense perforation with ribbing provides excellent heat transfer and is designed to allow the tray to be mounted on a BAKS wall bracket anywhere

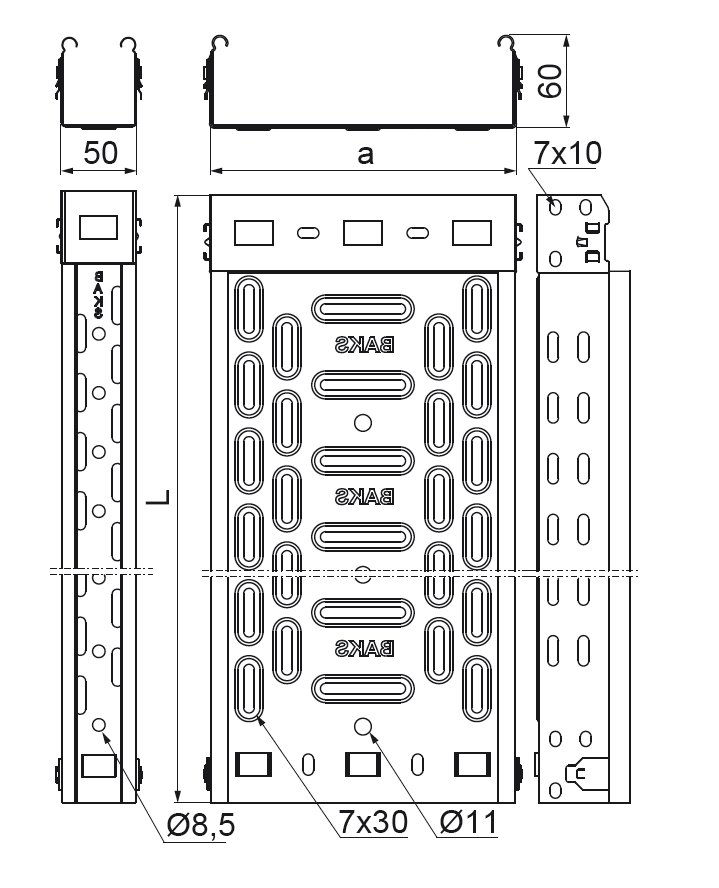

– Ø8.5 holes up to the width of 50 mm and Ø11 from the width of 100 mm in the bottom of the tray allow suspension on a single threaded rod (maximum width of the tray so suspended 200 mm)
– Magnelis-coating system can be supplemented with hot-dip zinc or stainless steel products
– detailed information on the Magnelis coating is available at baks.com.com.pl
– option E90 for widths of 400 mm
