0.7

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

L - painting in standard RAL colour

Additional information

Advantages of new system:
- Fast and easy assembly
- Firm click connection
- Deep stamping around the slots in the bottom increase the strength
- Dense perforation with stamping around the slots for excellent heat
transfer – designed to enable cable tray installation on supports from
BAKS anywhere within the system

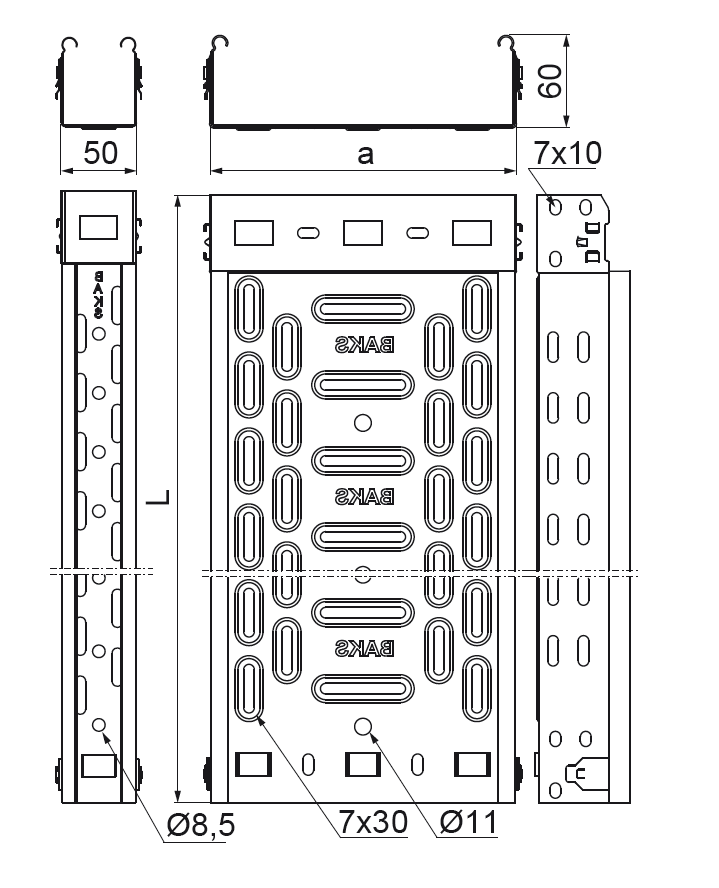

Slotted holes Ø11 in the cable tray bottom allow for suspension
on a threaded rod

Product versions

Add

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
50 mm 2900 mm
	KFL50H60/2	160923	50	2 000 mm	0.98 kg	4 / 8 pcs. / m.	2,900	Add
	KFL50H60/3	161023	50	3 000 mm	0.98 kg	4 / 12 pcs. / m.	2,900	Add
100 mm 5800 mm
	KFL100H60/2	161123	100	2 000 mm	1.17 kg	4 / 8 pcs. / m.	5,800	Add
	KFL100H60/3	161223	100	3 000 mm	1.17 kg	4 / 12 pcs. / m.	5,800	Add
150 mm 8800 mm
	KFL150H60/2	161323	150	2 000 mm	1.43 kg	4 / 8 pcs. / m.	8,800	Add
	KFL150H60/3	161423	150	3 000 mm	1.43 kg	4 / 12 pcs. / m.	8,800	Add
200 mm 11800 mm
	KFL200H60/2	161523	200	2 000 mm	1.63 kg	4 / 8 pcs. / m.	11,800	Add
	KFL200H60/3	161623	200	3 000 mm	1.63 kg	4 / 12 pcs. / m.	11,800	Add
300 mm 17800 mm
	KFL300H60/2	161723	300	2 000 mm	2.11 kg	4 / 8 pcs. / m.	17,800	Add
	KFL300H60/3	161823	300	3 000 mm	2.11 kg	4 / 12 pcs. / m.	17,800	Add
400 mm 23800 mm
	KFL400H60/2	161923	400	2 000 mm	2.60 kg	4 / 8 pcs. / m.	23,800	Add
	KFL400H60/3	162023	400	3 000 mm	2.60 kg	4 / 12 pcs. / m.	23,800	Add
