Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

L - painting in standard RAL colour

Additional information

Advantages of new system:
- Fast and easy assembly
- Firm click connection
- Deep stamping around the slots in the bottom increase the strength
- Dense perforation with stamping around the slots for excellent heat
transfer – designed to enable cable tray installation on supports from
BAKS anywhere within the system

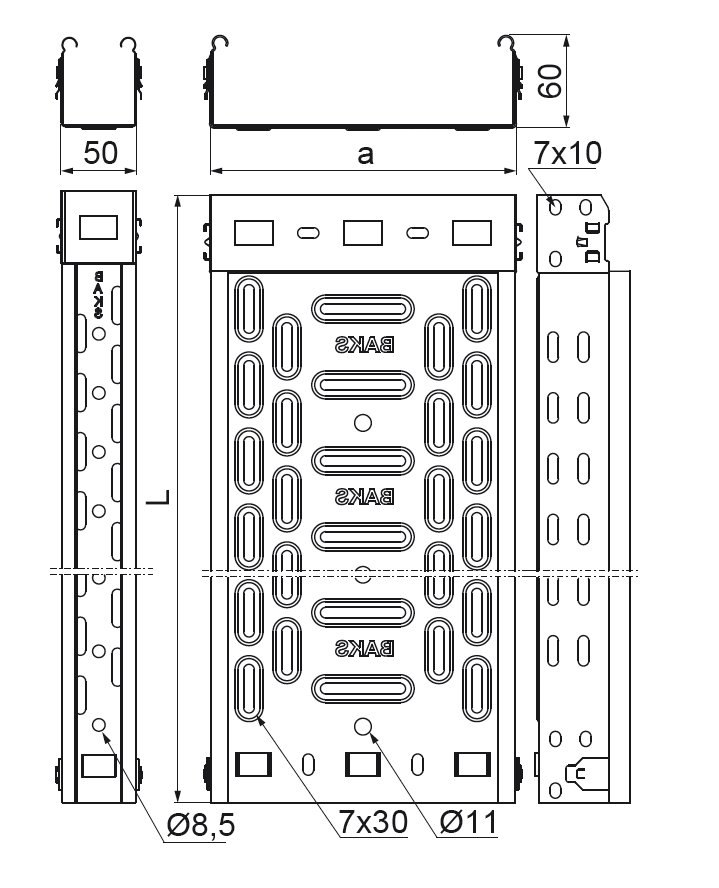

Slotted holes Ø11 in the cable tray bottom allow for suspension
on a threaded rod

Product versions

Add

	Symbol	Length L (mm)	Width a (mm)	Catalogue number	Quantity in box (pcs. / m.)	Weight (1m) (kg)	Effective section
100 mm 5800 mm
	KFJ100H60/3	3 000 mm	100	162623	4 / 12 pcs. / m.	1.53 kg	5,800	Add
150 mm 8800 mm
	KFJ150H60/3	3 000 mm	150	162723	4 / 12 pcs. / m.	1.86 kg	8,800	Add
200 mm 11800 mm
	KFJ200H60/3	3 000 mm	200	162823	4 / 12 pcs. / m.	2.13 kg	11,800	Add
300 mm 17800 mm
	KFJ300H60/3	3 000 mm	300	162923	4 / 12 pcs. / m.	2.76 kg	17,800	Add
400 mm 23800 mm
	KFJ400H60/3	3 000 mm	400	163023	2 / 6 pcs. / m.	3.37 kg	23,800	Add
500 mm 29800 mm
	KFJ500H60/3	3 000 mm	500	163123	2 / 6 pcs. / m.	4.04 kg	29,800	Add
600 mm 35800 mm
	KFJ600H60/3	3 000 mm	600	163223	2 / 6 pcs. / m.	4.64 kg	35,800	Add
