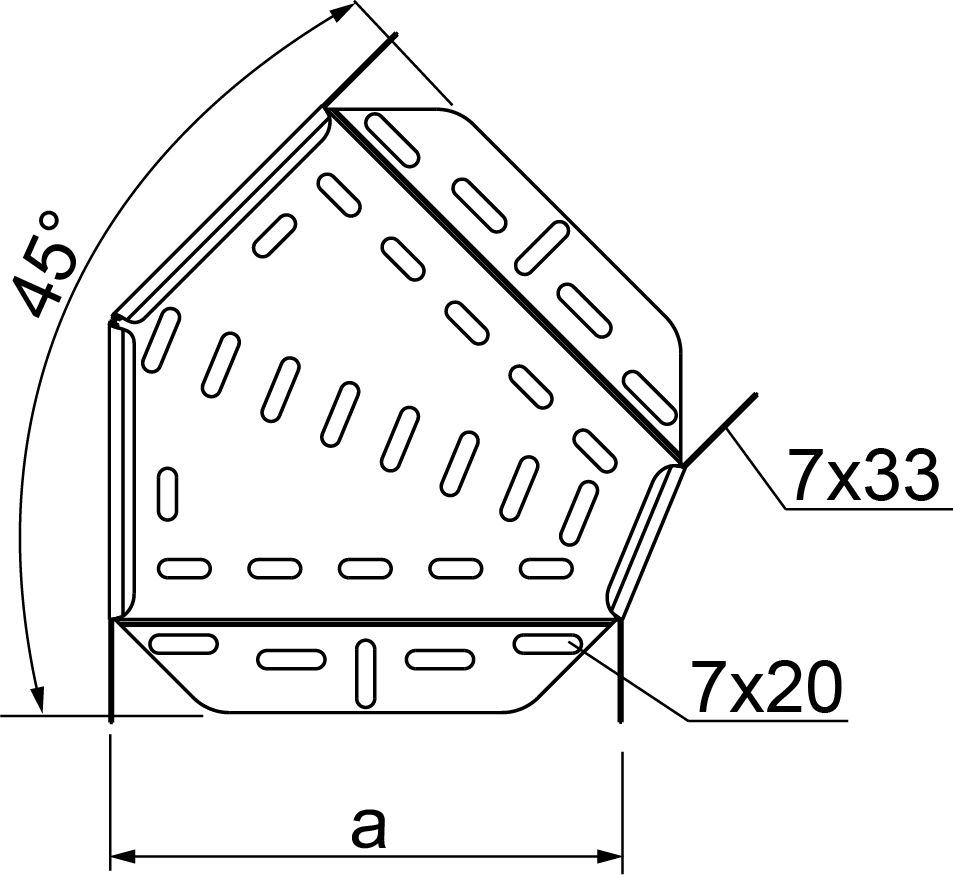

KKMJ...H60 Horizontal Bend 45°

1.0 Cable Management Solutions – BAKS
Information

Diversions in cable routing.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

For the assembly use Screw Sets SGKM6x12 or SGM6x12.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add
Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
50 mm
Cable Management Solutions – BAKS
mm
KKMJ50H60
Cable Management Solutions – BAKS
50
Cable Management Solutions – BAKS
0.16
Cable Management Solutions – BAKS
163324
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
mm
KKMJ100H60
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
0.29
Cable Management Solutions – BAKS
168902
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
150 mm
Cable Management Solutions – BAKS
mm
KKMJ150H60
Cable Management Solutions – BAKS
150
Cable Management Solutions – BAKS
0.41
Cable Management Solutions – BAKS
169002
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
mm
KKMJ200H60
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
0.55
Cable Management Solutions – BAKS
169102
Cable Management Solutions – BAKS
1 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
mm
KKMJ300H60
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
0.91
Cable Management Solutions – BAKS
169302
Cable Management Solutions – BAKS
1 		Add
