KKNd...H38 90° Horizontal Bend 2 Comp. - English version - Katalog produktów BAKS

KKNd...H38 90° Horizontal Bend 2 Comp.

1.0
Information

Changing the direction of the cable route.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add

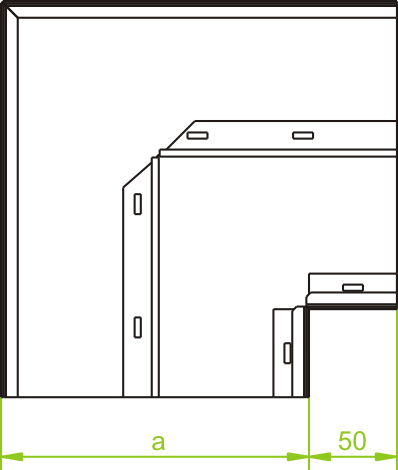

Symbol Width a (mm) Weight 1 pc. (kg) Catalogue number Quantity (pcs.)
Cable Management Solutions – BAKS
175 mm
Cable Management Solutions – BAKS
mm
KKNd175H38
Cable Management Solutions – BAKS
175
Cable Management Solutions – BAKS
0.96
Cable Management Solutions – BAKS
530817
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
190 mm
Cable Management Solutions – BAKS
mm
KKNd190H38
Cable Management Solutions – BAKS
190
Cable Management Solutions – BAKS
1.07
Cable Management Solutions – BAKS
530819
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
240 mm
Cable Management Solutions – BAKS
mm
KKNd240H38
Cable Management Solutions – BAKS
240
Cable Management Solutions – BAKS
1.35
Cable Management Solutions – BAKS
530824
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
250 mm
Cable Management Solutions – BAKS
mm
KKNd250H38
Cable Management Solutions – BAKS
250
Cable Management Solutions – BAKS
1.45
Cable Management Solutions – BAKS
530825
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
340 mm
Cable Management Solutions – BAKS
mm
KKNd340H38
Cable Management Solutions – BAKS
340
Cable Management Solutions – BAKS
2.10
Cable Management Solutions – BAKS
530834
Cable Management Solutions – BAKS
4 		Add
Cable Management Solutions – BAKS
350 mm
Cable Management Solutions – BAKS
mm
KKNd350H38
Cable Management Solutions – BAKS
350
Cable Management Solutions – BAKS
2.20
Cable Management Solutions – BAKS
530835
Cable Management Solutions – BAKS
4 		Add
