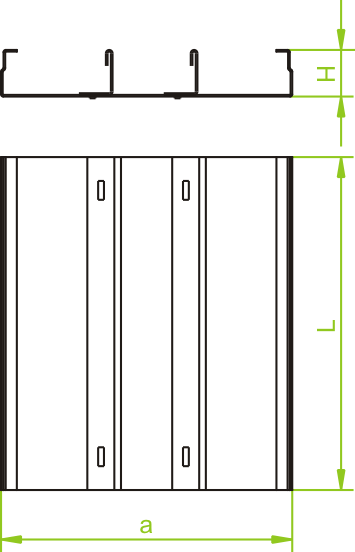

KNt...H38 Underfloor Trunking 3 Comp.

OK... Fastening Clamp H28

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
175 mm mm
	KNt175H38/2	175	2 000 mm	3.34 kg	530517	6 / 12 pcs. / m.	Add
	KNt175H38/3	175	3 000 mm	3.34 kg	530617	6 / 18 pcs. / m.	Add
190 mm mm
	KNt190H38/2	190	2 000 mm	3.46 kg	530519	6 / 12 pcs. / m.	Add
	KNt190H38/3	190	3 000 mm	3.46 kg	530619	6 / 18 pcs. / m.	Add
240 mm mm
	KNt240H38/2	240	2 000 mm	3.86 kg	530524	6 / 12 pcs. / m.	Add
	KNt240H38/3	240	3 000 mm	3.86 kg	530624	6 / 18 pcs. / m.	Add
250 mm mm
	KNt250H38/2	250	2 000 mm	3.96 kg	530525	4 / 8 pcs. / m.	Add
	KNt250H38/3	250	3 000 mm	3.96 kg	530625	4 / 12 pcs. / m.	Add
340 mm mm
	KNt340H38/2	340	2 000 mm	4.66 kg	530534	4 / 8 pcs. / m.	Add
	KNt340H38/3	340	3 000 mm	4.66 kg	530634	4 / 12 pcs. / m.	Add
350 mm mm
	KNt350H38/2	350	2 000 mm	4.76 kg	530535	4 / 8 pcs. / m.	Add
	KNt350H38/3	350	3 000 mm	4.76 kg	530635	4 / 12 pcs. / m.	Add
