KNd...H38 Underfloor Trunking 2 Comp.

1.0

Information

Routing subfloor cable routes.

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

E - stainless steel

Product versions

Add

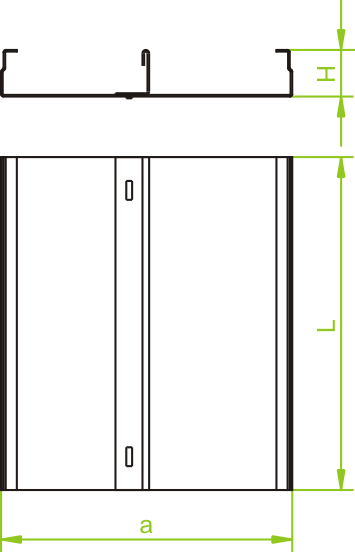

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)
175 mm mm
	KNd175H38/2	175	2 000 mm	2.79 kg	530317	6 / 12 pcs. / m.	Add
	KNd175H38/3	175	3 000 mm	2.79 kg	530417	6 / 18 pcs. / m.	Add
190 mm mm
	KNd190H38/2	190	2 000 mm	2.91 kg	530319	6 / 12 pcs. / m.	Add
	KNd190H38/3	190	3 000 mm	2.91 kg	530419	6 / 18 pcs. / m.	Add
240 mm mm
	KNd240H38/2	240	2 000 mm	3.31 kg	530324	6 / 12 pcs. / m.	Add
	KNd240H38/3	240	3 000 mm	3.31 kg	530424	6 / 18 pcs. / m.	Add
250 mm mm
	KNd250H38/2	250	2 000 mm	3.41 kg	530325	4 / 8 pcs. / m.	Add
	KNd250H38/3	250	3 000 mm	3.41 kg	530425	4 / 12 pcs. / m.	Add
340 mm mm
	KNd340H38/2	340	2 000 mm	4.11 kg	530334	4 / 8 pcs. / m.	Add
	KNd340H38/3	340	3 000 mm	4.11 kg	530434	4 / 12 pcs. / m.	Add
350 mm mm
	KNd350H38/2	350	2 000 mm	4.21 kg	530335	4 / 8 pcs. / m.	Add
	KNd350H38/3	350	3 000 mm	4.21 kg	530435	4 / 12 pcs. / m.	Add
