Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding one
into another and connector-free assembly. For the assembly use Screw
Sets SGK M6x12 or SG M6x12.

Product versions

Add

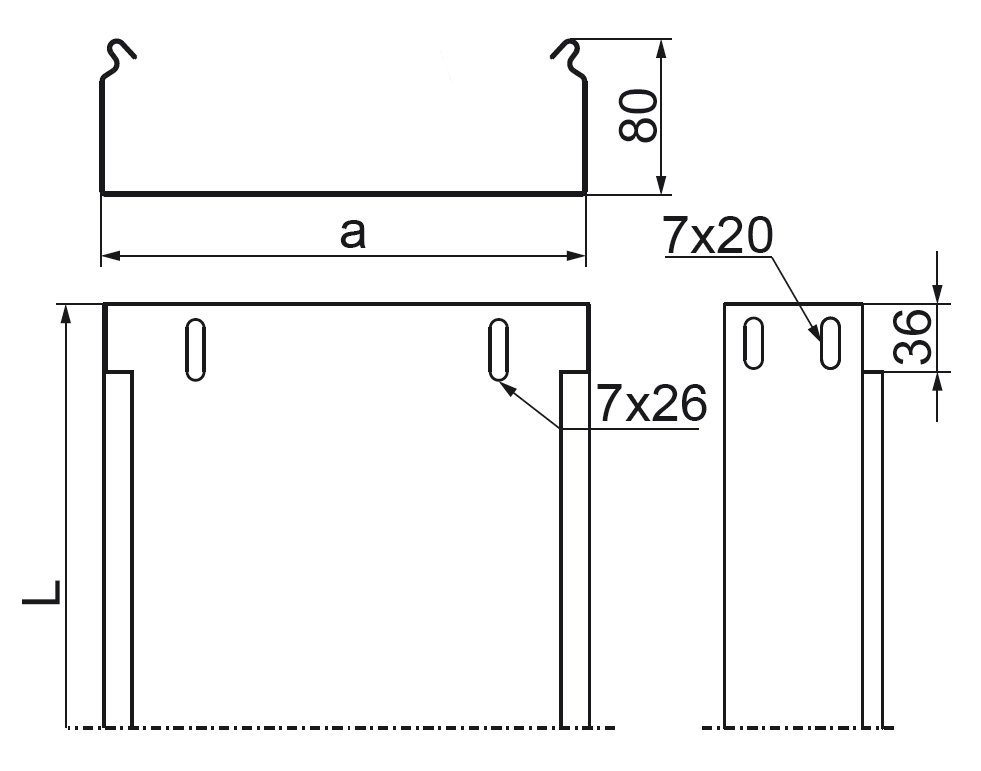

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 7800 mm
	KBJ100H80/3	181610	100	3 000 mm	2.19 kg	4 / 12 pcs. / m.	7,800	Add
200 mm 15800 mm
	KBJ200H80/3	181620	200	3 000 mm	2.94 kg	4 / 12 pcs. / m.	15,800	Add
300 mm 23800 mm
	KBJ300H80/3	181630	300	3 000 mm	3.69 kg	2 / 6 pcs. / m.	23,800	Add
