Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

E - stainless steel

L - painting in standard RAL colour

Additional information

Possibility of joining cable tray sections together through sliding one
into another and connector-free assembly. For the assembly use Screw
Sets SGK M6x12 or SG M6x12.
NOTE! The 1.2 mm thick, stainless steel trays have no upper embossing
(a right angle bend). The covers cannot be snapped closed. The trays can
be joined only by means of connectors (no cut-outs in the tray’s side).

Product versions

Add

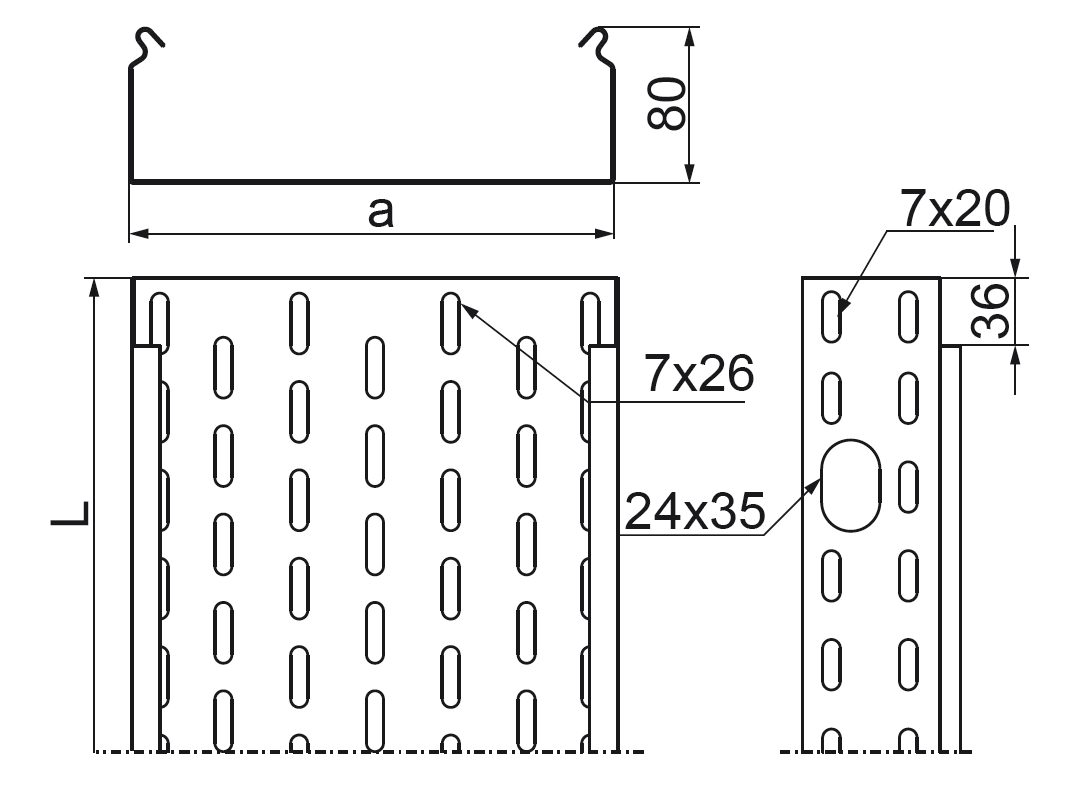

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
100 mm 7800 mm
	KOJ100H80/3	181010	100	3 000 mm	1.63 kg	4 / 12 pcs. / m.	7,800	Add
200 mm 15800 mm
	KOJ200H80/3	181020	200	3 000 mm	2.33 kg	4 / 12 pcs. / m.	15,800	Add
300 mm 23800 mm
	KOJ300H80/3	181030	300	3 000 mm	2.87 kg	2 / 6 pcs. / m.	23,800	Add
400 mm 31800 mm
	KOJ400H80/3	181040	400	3 000 mm	3.64 kg	2 / 6 pcs. / m.	31,800	Add
