KZLCH100 Cable Tray with Integral Connector

1.5 2.0
2.0 Cable Management Solutions – BAKS
Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

For the installation use 10 sets of Screw SGKFM8x14
or SGFM8x14.

Note
Integrated couplers. Assembly without additional couplers.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Add

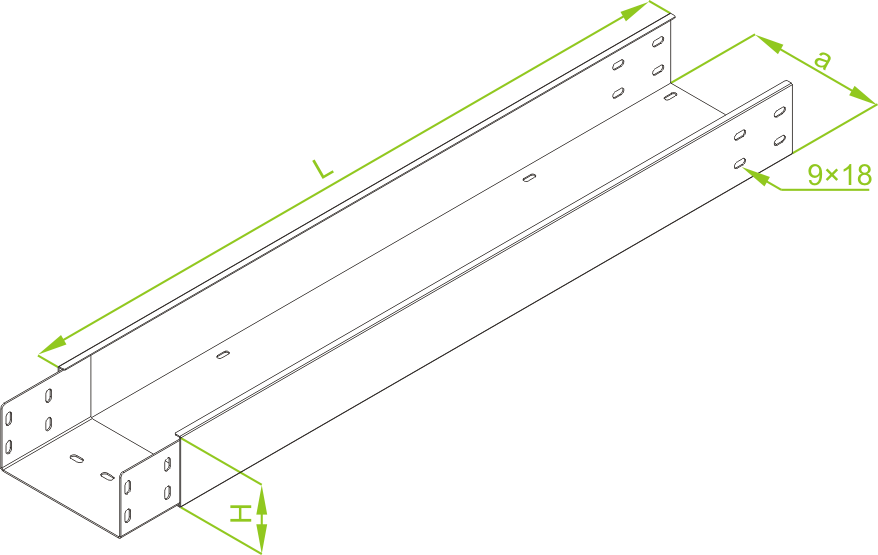

Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
9800 mm
KZLC100H100/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
6.17 kg
Cable Management Solutions – BAKS
312910
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800 		Add
Cable Management Solutions – BAKS
200 mm
Cable Management Solutions – BAKS
19800 mm
KZLC200H100/3
Cable Management Solutions – BAKS
200
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
8.22 kg
Cable Management Solutions – BAKS
312920
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
19,800 		Add
Cable Management Solutions – BAKS
300 mm
Cable Management Solutions – BAKS
29800 mm
KZLC300H100/3
Cable Management Solutions – BAKS
300
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
10.16 kg
Cable Management Solutions – BAKS
312930
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
29,800 		Add
Cable Management Solutions – BAKS
400 mm
Cable Management Solutions – BAKS
39800 mm
KZLC400H100/3
Cable Management Solutions – BAKS
400
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
12.11 kg
Cable Management Solutions – BAKS
312940
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
39,800 		Add
Cable Management Solutions – BAKS
500 mm
Cable Management Solutions – BAKS
49800 mm
KZLC500H100/3
Cable Management Solutions – BAKS
500
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
14.06 kg
Cable Management Solutions – BAKS
312950
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
49,800 		Add
Cable Management Solutions – BAKS
600 mm
Cable Management Solutions – BAKS
59800 mm
KZLC600H100/3
Cable Management Solutions – BAKS
600
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
16.01 kg
Cable Management Solutions – BAKS
312960
Cable Management Solutions – BAKS
2 / 6 pcs. / m.
Cable Management Solutions – BAKS
59,800 		Add
Load
Cable Management Solutions – BAKS Cable Management Solutions – BAKS

Qdop. (kN/m)
0.0
L (m)
0.0
Filling value
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 1
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 2
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 3
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS
Cable 4
Cable Management Solutions – BAKS
Cable Management Solutions – BAKS


Filling reserve (%)
Cable Management Solutions – BAKS
Filling correction (%)
Cable Management Solutions – BAKS
