KZWCH100 Reinforced Cable Tray

1.5 2.0
2.0 Cable Management Solutions – BAKS Cable Management Solutions – BAKS
Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

Advantage:
Additional top bendings increase loading capacity and protect
the cables against damage during laying.
To join 2 cable tray lengths firmly use either 2 pair of Straight
LZC or 1 pc of U-Shaped Connector LCC... and 16 sets
of Screw SGKFM8x14 or SGFM8x14.

Note
Connecting of trays with the use of couplers only.
Product versions
Cable Management Solutions – BAKS Cable Management Solutions – BAKS
No product version selected
Add

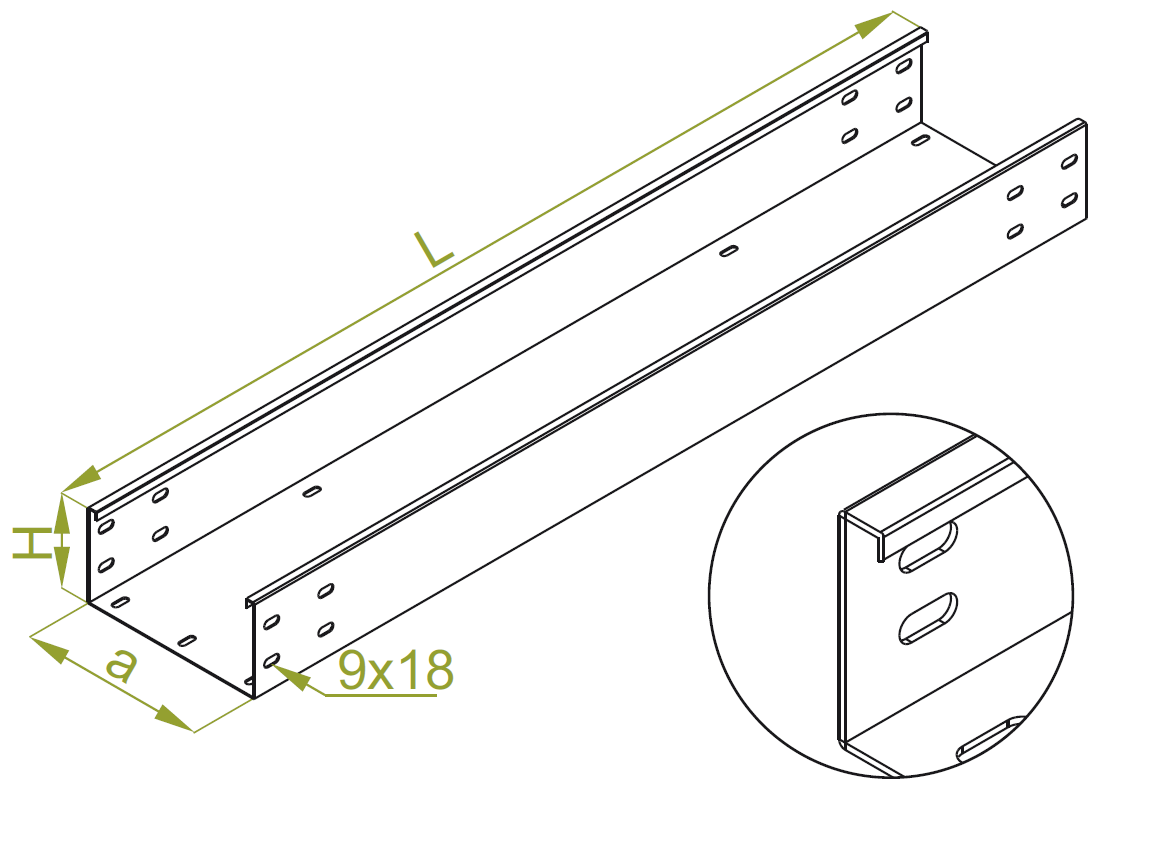

Symbol Width a (mm) Length L (mm) Weight (1m) (kg) Catalogue number Quantity in box (pcs. / m.) Effective section 3D file
Cable Management Solutions – BAKS
100 mm
Cable Management Solutions – BAKS
9800 mm
KZWC100H100/3
Cable Management Solutions – BAKS
100
Cable Management Solutions – BAKS
3 000 mm
Cable Management Solutions – BAKS
5.48 kg
Cable Management Solutions – BAKS
315410
Cable Management Solutions – BAKS
4 / 12 pcs. / m.
Cable Management Solutions – BAKS
9,800 		Plik *.std Add
