1.5

Information

Cable routing.

Material

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

Available finishes:

E - stainless steel

L - painting in standard RAL colour

Additional information

Advantage:
Additional top bendings increase loading capacity and protect
the cables against damage during laying.
To join 2 cable tray lengths firmly use either 2 pair of Straight
LZC or 1 pc of U-Shaped Connector LCC... and 16 sets
of Screw SGKFM8x14 or SGFM8x14.

Note
Connecting of trays with the use of couplers only.

Product versions

Add

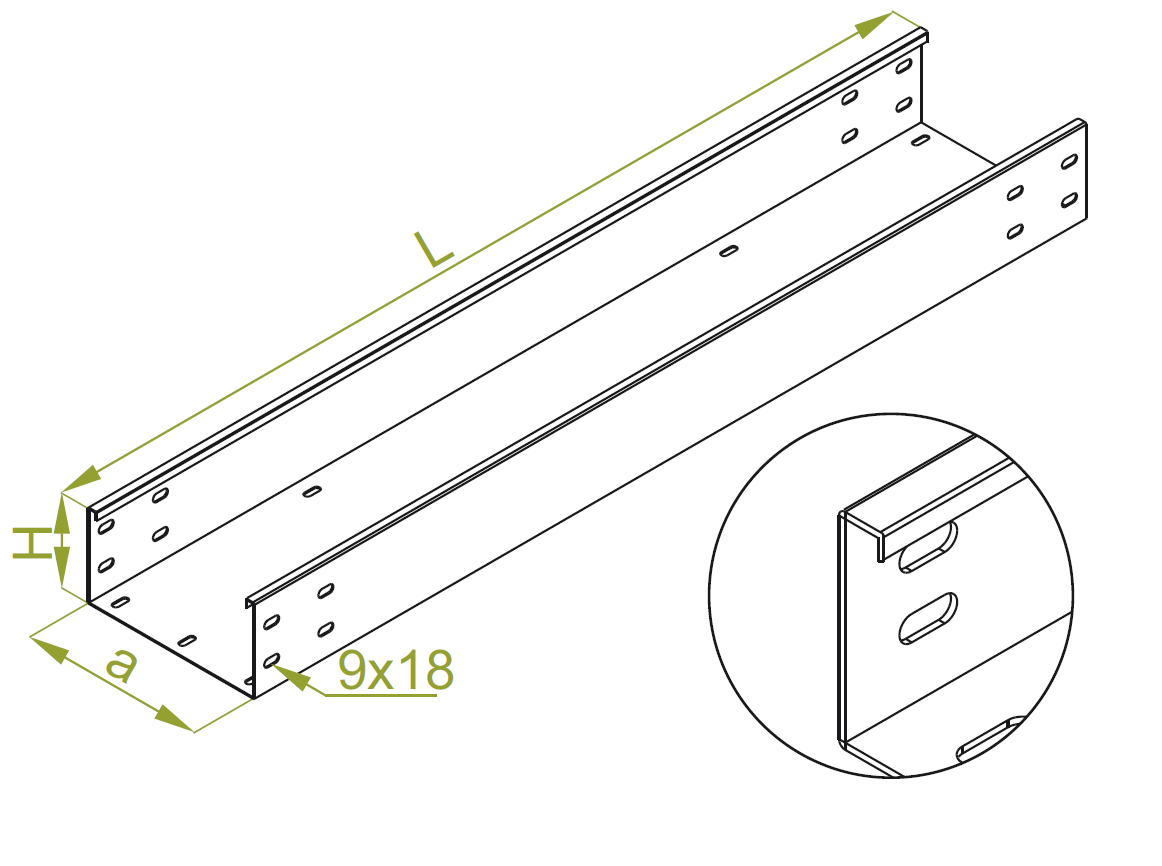

	Symbol	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Catalogue number	Quantity in box (pcs. / m.)	Effective section
100 mm 9800 mm
	KZWP100H100/3	100	3 000 mm	4.11 kg	315210	4 / 12 pcs. / m.	9,800	Add
200 mm 19800 mm
	KZWP200H100/3	200	3 000 mm	5.35 kg	315220	2 / 6 pcs. / m.	19,800	Add
300 mm 29800 mm
	KZWP300H100/3	300	3 000 mm	6.58 kg	315230	2 / 6 pcs. / m.	29,800	Add
400 mm 39800 mm
	KZWP400H100/3	400	3 000 mm	7.82 kg	315240	2 / 6 pcs. / m.	39,800	Add
500 mm 49800 mm
	KZWP500H100/3	500	3 000 mm	9.05 kg	315250	2 / 6 pcs. / m.	49,800	Add
600 mm 59800 mm
	KZWP600H100/3	600	3 000 mm	10.29 kg	315260	2 / 6 pcs. / m.	59,800	Add
