Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10.

Product versions

Add

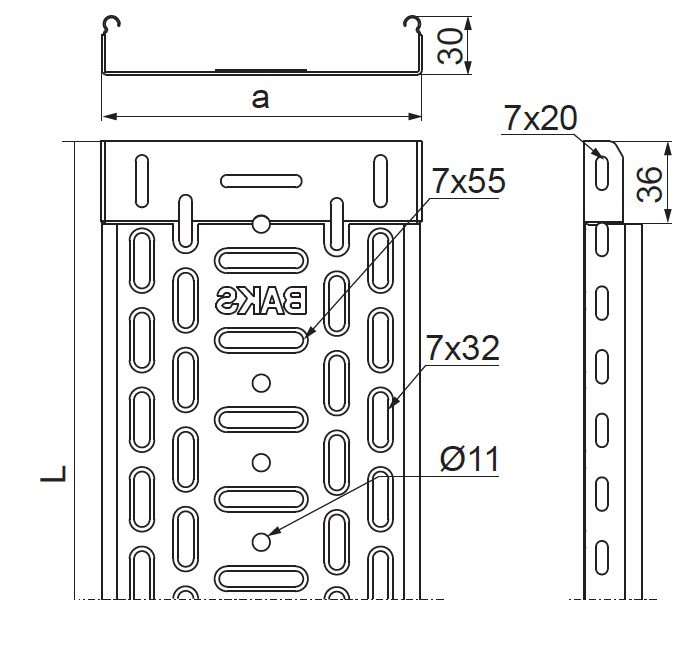

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
35 mm 850 mm
	KGJ35H30/3	130603	35	3 000 mm	0.67 kg	4 / 12 pcs. / m.	850	Add
50 mm 1300 mm
	KGJ50H30/3	130605	50	3 000 mm	0.77 kg	4 / 12 pcs. / m.	1,300	Add
100 mm 2800 mm
	KGJ100H30/3	130516	100	3 000 mm	1.10 kg	4 / 12 pcs. / m.	2,800	Add
