0.5

Information

Cable routing

Material

S - Sendzimir method galvanised steel PN-EN 10346:2015-09

Available finishes:

F - hot dip galvanised steel PN-EN ISO 1461:2023-02

L - painting in standard RAL colour

Additional information

* - Versions over 300 m available on request

Possibility of joining cable tray sections together through sliding
one into another and connector-free assembly. For the assembly
use Screw Sets SGKM6x10 or SGM6x10.

Product versions

Add

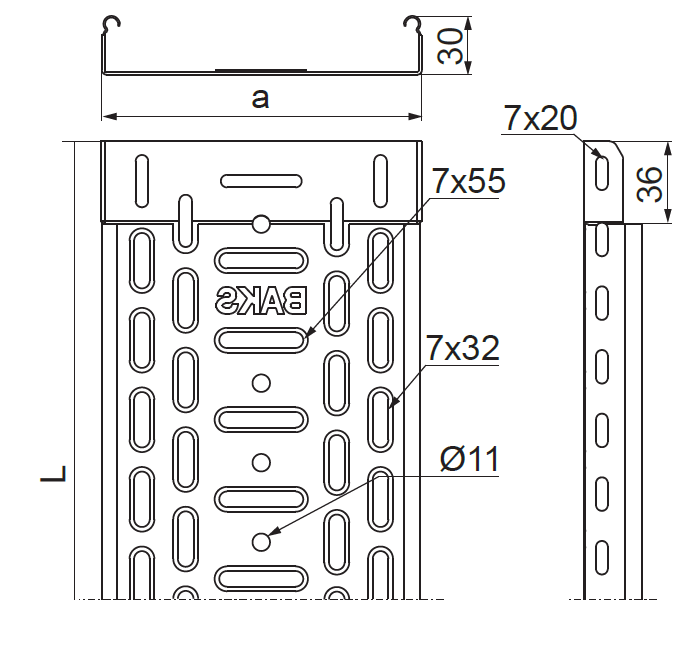

	Symbol	Catalogue number	Width a (mm)	Length L (mm)	Weight (1m) (kg)	Quantity in box (pcs. / m.)	Effective section
35 mm 850 mm
	KGR35H30/2	130103	35	2 000 mm	0.39 kg	4 / 8 pcs. / m.	850	Add
	KGR35H30/3	130203	35	3 000 mm	0.39 kg	4 / 12 pcs. / m.	850	Add
50 mm 1300 mm
	KGR50H30/3	130205	50	3 000 mm	0.43 kg	4 / 12 pcs. / m.	1,300	Add
100 mm 2800 mm
	KGR100H30/3	130916	100	3 000 mm	0.62 kg	4 / 12 pcs. / m.	2,800	Add
150 mm 4300 mm
	KGR150H30/3	131016	150	3 000 mm	0.86 kg	4 / 12 pcs. / m.	4,300	Add
200 mm 5800 mm
	KGR200H30/3	131116	200	3 000 mm	0.99 kg	4 / 12 pcs. / m.	5,800	Add
